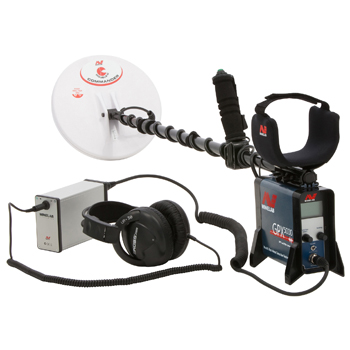

Minelab GPX-5000 Metal Detector
More new features and functions make the GPX 5000 the best gold detector in the world!
The GPX 5000 sets the new benchmark in gold detecting technology. With an amazing range of features and functions the GPX 5000 is not only superior to its predecessor, the GPX-4500, and is in a class of its own. Featuring Minelab's exclusive technologies, Multi Period Sensing (MPS), Dual Voltage Technology (DVT) and Smart Electronic Timing Alignment (SETA), the high performance GPX 5000 is capable of finding more gold than ever before. From sub-gram nuggets to the elusive 'retirement nugget' and everything in between, with the GPX 5000, you can find it.
New improved electronics, new Soil/Timings and an amazing range of features combined with the legendary GPX ability to ‘see through ground’ mineralisation, gives you a significant Depth Advantage over other detectors.
Using unique features, functions and industry leading patented technology ensure the GPX detectors run smooth and quiet in even the most severe ground conditions, whilst still maintaining excellent depth and sensitivity to gold nuggets. Serious detectorists know that GPX detectors find gold much deeper than ANY other detector, in ALL ground conditions. That's why we are confident to say we have the GPX Depth Advantage.
With more Timings than ever before, the 8 Timings available on the GPX 5000 change the digital switching and processing of the electronics in the detector. Each Timing has been designed for optimum performance under certain conditions, so it is like having a different detector each time you select a new Timing.
|Application:||Gold Prospecting & Deep Relic|
|Technology:||MPS, DVT & SETA|
|Frequency/Transmission:||Bi-Level, Advanced Pulse Induction|
|Coil (standard):||11" Round Double-D plus 11" Monoloop.|
|Audio Output:||6.35mm (1/4") headphone/speaker jack.|
|Headphones Supplied:||Koss 100 ohm headphones.|
|Visual Display:||64 x 128 pixels, transflective with white backlight.|
|Backlight:||Yes with adjustable automatic 'time-out'.|
|Memory:||Setting changes saved automatically and remain until changed or reset. Factory Presets can be restored on start-up.|
|Detect Modes:||General, Deep, Hi-Mineral, Patch, Hi-Trash & Pinpoint (all user programmable)|
|Discrimination:||Iron Reject: range 1 to 10 & Off (All Metal).|
|Timings:||Normal, Sensitive Extra, Enhance, Sharp, Sensitive Smooth, Coin/Relic, Salt/Gold & Fine Gold.|
|Audio tone:||Variable Control 1 to 100.|
|Audio Type:||Quiet, Normal & Deep & Boost.|
|Ground Balance:||Automatic Ground Balance, Fixed & Tracking: Slow, Medium & Fast. Quick-Trak button.|
|Ground Balance Type:||General & Ground Balance Off.|
|Sensitivity Adjust:||Rx Gain 1 to 20.|
|Tune / Noise Cancel:||Automatic & Manual 0 to 255.|
|Threshold:||Adjustable turn control.|
|Target Volume Adjust:||Target Volume 1 to 20. Volume Limit 1 to 20.|
|Battery:||Lithium-ion rechargeable battery 68Wh with in-built amplifier for speaker use. Approx. 12 Hours use. Supplied with mains and vehicle charger.|
|Low battery alert||Audio alert.|
|Length:||1100mm (43.3”) to 1300mm (51.2”).|
|Weight:||2.4kg (5.3lbs) including 11” coil (excluding battery and accessories). Battery weight 780g (1.7lbs).|
|Warranty:||3 years control box & coil.|
